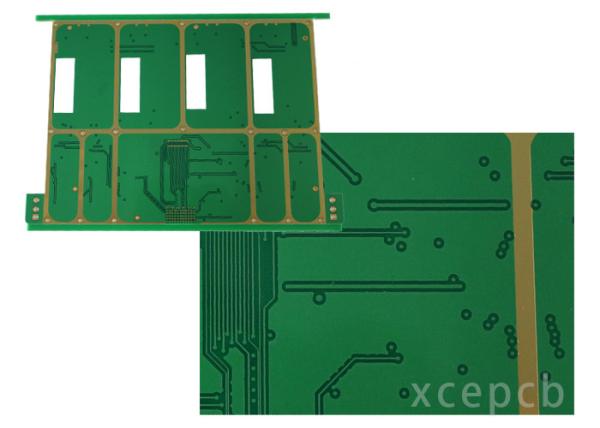

Vias filled Rogers 4003 Multilayer PCB Boards Fabrication Half hole

Quick detail:

Layer: 8

Special: vias filled with resin

Half hole

Material: Rogers 4003C 0.762MM

Surface finish:ENIG

Board size:9*8CM

Quantity: 500pcs

Delivery time: 7 days

SPECIFICATIONS:

• Copper double side laminate with polyester/ceramic dielectric
• Dielectric constant (εr): 3.40 (±0.05) @ 10 GHz
• Dissipation factor (tan δ): 0.002 @ 10 GHz
• Dielectric thickness: 0.254 mm (0.010 in)
• Copper thickness: 0.5 OZ (17.5 μm)
• Board dimensions: 220 x 185 mm
• Final hickness:1.0mm
• Surface finish: Immersion gold
• Green solder mask , white silk screen
• Rogers 4003 material in stock:10mil,20mil,30mil,
• Application: Bluetooth antenna
• Special: half hole,antenna,0.15MM hole

Rogers high frequency pcb widely used in the area of high technologies like communication device,Electronics,Aerospace,Military industry and so on. we have accumulated abandunt experiences in the line of high frequency microwave business for which widely apply to power divider,combiner,power amplifier,line amplifier,base station,RF antena,4G antena etc.

Sufficient rogers high frequency pcb material stock:

We have sufficient rogers material raw as follow:RO4003C,RO4350B,RO4360,RO4533,RO4535,RO4730,RO4232,RO4233,RO3003,

RO3006,RO3010,RO3035,RO3203,RO3206,RO3210,RO3730,RO5780,RO5880,RO6002,

RO3202,RO6006,Frequently-used is 4003C,4350B,5880

So we can do pcb circuit board with your detail requirements in the case of you send us gerber files or any other files

Capability:

Material: FR4, High TG FR4,Rogers 4003,4350,Al Aluminum metal base,Taconic,Halogen Free material, CEM-3,Fr2,CEM-1,CEM-2,94VO, Rogers HF material, Polyamide, Flexible PCB FPC etc.

Layer counts: 1-36 layers, (Normaly is double side and Multilayer PCB)

Finished Copper Thickness: 0.5-5 OZ

Finished Board Thickness: 0.2-6.0mm

Min. Line/Track Width: 3mil

Min. Line/Track Space: 3mil

Min. Contour Tolerance: +/-0.1mm

Min. Finished Diameter of PTH Hole: 0.1mm

Max. Board Thickness/Hole Ratio: 12:1

Min. Solder Mask Bridge: 4mil (Min. SMT Pad Space 8mil)

Min. Legend(Silkscreen) Track Width: 5mil

Min. Legend(Silkscreen) Height: 30mil

Min. drilling slot size: 0.6mm

Solder mask color: green, black, blue, white, yellow, purple, and matt, etc.

Solder mask hardness: 6H

Legend/Silkscreen Color: white, yellow, black, etc.

Surface Treatment: HAL, Lead Free HAL, Immersion gold, OSP, Immersion tin, Immersion silver, etc.

Other Technology: Gold finger, peelable mask, Non-across blind/buried vias, characteristic impedance control, Rigid-flex board etc.

Reliability Test: flying probe test/fixture test, impedance test, solderability test, thermal shock test, hole resistance test, and micor metallographic section analysis, etc.

Wrap and twist: ≤0.7%

Flammability: 94V-0

High Density PCB, Impedance control PCB, Buried & Blind Via, Gold Finger PCB,

Gold Plating PCB,Immersion Golden surface, HASL surface. Heavy Copper PCB,

Rogers PCB,Rigid Flex PCB, Teflon PCB, Halogen Free PCB, High TG PCB(High Temperature PCB), HF PCB(High Frequency PCB);

Xinchenger Electronics co.,Ltd established in 2009,we have committed ourselves to manufacturing various of printed circuit boards.

We have accumulated abundant experiences in the line of high frequency microwave business for which widely apply to power divider,combiner,power amplifier,line amplifier,base station,RF antena,4G antena so on and so forth. Our company's sufficient stocks of hi-frequency pcb materials such as Rogers,TACONIC,Arlon,Isola,F4B,TP-2,FR-4 (dielectric rage:2.2-16) mainly used in the area of high technologies like communication device,Electronics,Aerospace,Military industry to meet our worldwide customers with high quality. Furthermore,we also keen on helping customers shorten the period of production development and 24 hours of sample service is available.

Since the day of company foundation we continuously engaged in researching special and high precision printed circuit boards with the strong production capability of 2 to 28 layers of highly precise impedence,multi-layer blind buried,multi-layer mix-compression,high TG, copper substrate,Ceramic substrate PCB. We emphasize the significance of traning program for every single staff in the company even grass-roots employees which becomes the most competitive factors to excel from others,our company have many experienced and professional teams from management to production line,30% are highly educated among the total amount of employees,advanced engineers and senior technicians are up to 80 people.

With advanced foreign technology supports and domestic 3G/4G device manufacturer in microwave pcb field which lead our experienced hi-frequency researching team to one step ahead of the line of printed circuit board business,we are honored to obtain sound reputations over our worldwide customers on the basis of fine qulity,prompt delivery,satisfied after sales service for may years and we assure our customers that we will return the favors with more and more superior products in the near future.
