RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board

Shenzhen Xinchenger Electronic Co.,Ltd
Contact Now
    Buy cheap RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board from wholesalers

    Buy cheap RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board from wholesalers
    • Buy cheap RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board from wholesalers

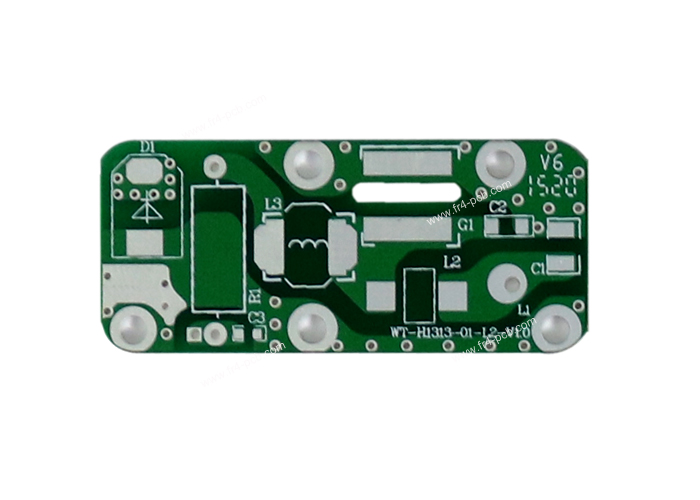

    RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board

    Ask Lasest Price
    Brand Name : XCE
    Model Number : XCER
    Certification : CE,ROHS, FCC,ISO9008,SGS,UL
    Price : negotiation
    Payment Terms : T/T,Western union
    Supply Ability : 1, 000, 000 PCS / week
    Delivery Time : 5-10 days
    • Product Details
    • Company Profile

    RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board

    RT5880 Rogers PCB 0.254 / 0.508 / 0.762MM DK2.2 4 Layer Board


    Specification:

    • Material: Rogers
    • Layer count: 4
    • Board thickness: 0.508mm
    • Surface techniques: Pb/Sn hasl and white solder mask
    • Minimum hole size: 0.3mm
    • Application: mobile phone board

    Description:


    The increasing complexity of electronic components and switches continually requires faster signal flow rates, and thus higher transmission frequencies. Because of short pulse rise times in electronic components, it has also become necessary for high frequency (HF) technology to view conductor widths as an electronic component.

    Depending on various parameters, HF signals are reflected on circuit board, meaning that theimpedance (dynamic resistance) varies with respect to the sending component. To prevent such capacitive effects, all parameters must be exactly specified, and implemented with the highest level of process control.

    Critical for the impedances in high frequency circuit boards are principally the conductor trace geometry, the layer buildup, and the dielectric constant (er) of the materials used.


    Parameter:


    PRODUCT’S DETAILS

    Raw Material

    Rogers

    Layer Count

    4-Layer

    Board Thickness

    0.508mm

    Copper Thickness

    35UM

    Surface Finish

    ENIG

    Solder Mask

    green

    Silkscreen

    White

    Min. Trace Width/Spacing

    0.075/0.075mm

    Min. Hole Size

    0.25mm

    Hole Wall Copper Thickness

    ≥20μm

    Measurement

    300×400mm

    Packaging

    Inner: Vacuum-packed in soft plastic bales
    Outer: Cardboard Cartons with double straps

    Application

    Communication,automobile,cell,computer,medical

    Advantage

    Competitive Price,Fast Delivery,OEM&ODM,Free Samples,

    Special Requirements

    Buried And Blind Via, Impedance Control, Via Plug,
    BGA Soldering And Gold Finger Are Acceptable

    Certification

    UL,ISO9001:2008,ROHS,REACH,SGS,HALOGEN-FREE


    Main Export Markets:

    • Western Europe
    • Asia
    • Australasia
    • Central/South America
    • Eastern Europe
    • Mid East/Africa
    • North America
