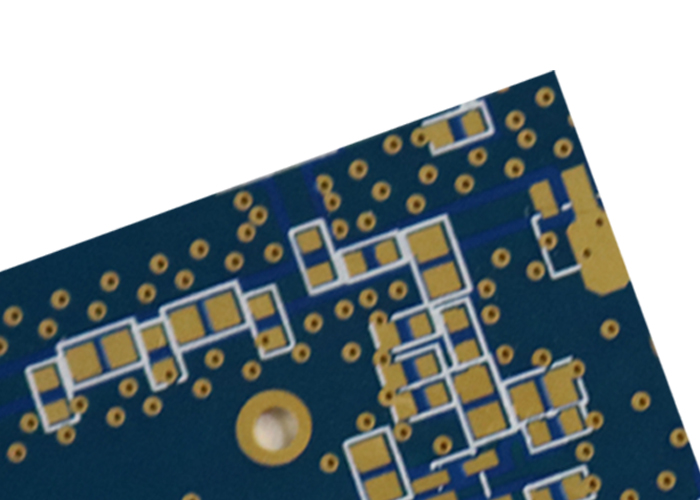

High Frequency Microwave RF PCB F4B ER = 2.2 Permittivity 4 Layer Pcb

Quick Detail :

Features:

RO3035™ high frequency circuit materials are ceramic- fi lled PTFE composites intended for use in commercial microwave and RF applications. This family of products was designed to offer exceptional electrical and mechanical stability at competitive prices.

RO3000® series laminates are ceramic-fi lled PTFE based circuit materials with mechanical properties that are consistent regardless of the dielectric constant selected. This allows the designer to develop multilayer board designs that use different dielectric constant materials for individual layers, without encountering warpage or reliability problems.

Parameter:

Description :

1.Professional manufacturer of PCB specialized in single-sided PCB, double-sided PCB, multilayer PCB.

2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180

3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger

Data :

Benefits:

• Laminates can be used in applications up to 30-40GHz
• Reliable stripline and mulilayer boards constructions
• Ideal for multilayer board designs with a range of dielectric constants
• Suitable for use with epoxy glass multilayer board hybrid designs
• Ideal for applications sensitive to temperature change
• Lower operating termperature and increase reliability in power amplifier applications

Typical Applications:

• band pass filters
• microstrip patch antennas
• voltage controlled oscillators

Production Description :

Competitive Advantage:
1) With UL,ROHS,ISO,IPC
2).Lead time:3-10 working days
3)Competitive price best quality
4).Rich 20 years experience in High Tg Multilayer PCB .


What Information customer need to provide for quotation ?
1. PCB Gerber files ,protel,powerpcb,Autocad,etc.
2. BOM list for PCB assembly.
3. Send us your sample PCB or PCBA.
4. OEM is acceptable.

Detailed Images :

Payment Term :

Xinchenger Electronics co.,Ltd established in 2009,we have committed ourselves to manufacturing various of printed circuit boards.

We have accumulated abundant experiences in the line of high frequency microwave business for which widely apply to power divider,combiner,power amplifier,line amplifier,base station,RF antena,4G antena so on and so forth. Our company's sufficient stocks of hi-frequency pcb materials such as Rogers,TACONIC,Arlon,Isola,F4B,TP-2,FR-4 (dielectric rage:2.2-16) mainly used in the area of high technologies like communication device,Electronics,Aerospace,Military industry to meet our worldwide customers with high quality. Furthermore,we also keen on helping customers shorten the period of production development and 24 hours of sample service is available.

Since the day of company foundation we continuously engaged in researching special and high precision printed circuit boards with the strong production capability of 2 to 28 layers of highly precise impedence,multi-layer blind buried,multi-layer mix-compression,high TG, copper substrate,Ceramic substrate PCB. We emphasize the significance of traning program for every single staff in the company even grass-roots employees which becomes the most competitive factors to excel from others,our company have many experienced and professional teams from management to production line,30% are highly educated among the total amount of employees,advanced engineers and senior technicians are up to 80 people.

With advanced foreign technology supports and domestic 3G/4G device manufacturer in microwave pcb field which lead our experienced hi-frequency researching team to one step ahead of the line of printed circuit board business,we are honored to obtain sound reputations over our worldwide customers on the basis of fine qulity,prompt delivery,satisfied after sales service for may years and we assure our customers that we will return the favors with more and more superior products in the near future.
