Shenzhen Xinchenger Electronic Co.,Ltd Printed Circuit Board Manufacturer Multilayer&High Frequency PCB Blind Buried Vias Hole
10 Years
| Ask Lasest Price | |
| Brand Name : | XCE |
| Model Number : | FR4 XCE 3 |
| Certification : | CE,ROHS,FCC,ISO9008,SGS,UL |
| Price : | Negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1000000 pieces per week |
| Delivery Time : | 5-10 working days |

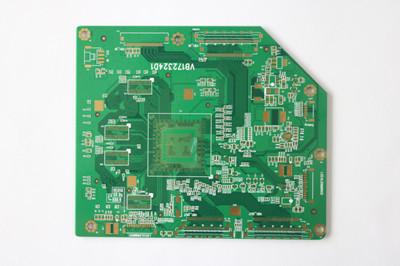

Multilayer Electronics Air Conditioner Part PCB Board Manufacturer
Quick Detail :
1. Type : Pcb
2. Material : FR4
3. Layer : multilayer
4. Products Size : 6*8 cm
5. Permittivity : 10.2
6. Surface finish : Hasl Lead-free
Features:
1. Fr4 pcb multilayer pcb with high frequency can improvide the products quality ,with high techolonogy treatment improve the life cycle of the products .
2. Hasl Lead Free surface finish make the pcb 's conductive performance enhancements.
3. Multilayer pcb design ,the precision of the pcb improves much more better .
4. Low dielectric : 10.2 dielectric conductivity much more precision .
Production Description :
| XCE PCB technical specifications | ||
| Annual stock Material | Rogers,Taconic,Arton,Isola,F4B,TP-2.FR-4,High TG,Halogen free | |
| Layer No. | 1~16 | |
| Min board thickness | 2 layer0.2mm 4 layer0.4mm 6 layer 0.6mm 8 layer 0.8mm 10 layer 1.0mm | |
| Max panel size | 508*610mm | |
| Board thickness tolerance | T≥0.8mm±8%.,T<0.8mm±5% | |
| Wall hole copper thickness | >0.025mm(1mil) | |
| Finished hole | 0.2mm-6.3mm | |
| Min line width | 4mil/4mil(0.1/0.1mm) | |
| Min bonding pad space | 0.1mm(4mil) | |
| PTH aperture tolerance | ±0.075mm(3mil) | |
| NPTH aperture tolerance | ±0.05mm(2mil) | |
| Hole site deviation | ±0.05mm(2mil) | |
| Profile tolerance | ±0.10mm(4mil) | |
| Board bend&warp | ≤0.7% | |
| Insulation resistance | >1012Ωnormal | |
| Through-hole resistance | <300Ωnormal | |
| Electric strength | >1.3kv/mm | |
| Current breakdown | 10A | |
| Peel strength | 1.4N/mm | |
| Soldmask regidity | >6H | |
| Thermal stress | 288℃20Sec | |
| Testing voltage | 50-300V | |
| Min buried blind via | 0.2mm(8mil) | |
| Outer copper thickness | 1oz-5oz | |
| Inner cooper thickness | 1/2 oz-4oz | |
| Aspect ratio | 8:1 | |
| SMT min green oil width | 0.08mm | |
| Min green oil open window | 0.05mm | |
| Insulation layer thickless | 0.075mm-5mm | |
| Taphole aperture | 0.2mm-0.6mm | |
| Special technology | Indepedance,Blind buried via,thick gold,aluminum PCB | |
| Surface finish | HASL,Lead free HASL,Immersion Gold, Immersion Tin, Immersion Silver,OSP ,ENIG ,Golden finger,Blue glue,Gold plating | |
| PCB SIZE | 60*80MM |
| BOARD TYPE | |
| Number of Layers | Double Sided PCB, 2 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5 oz)+plate TOP layer |
| FR-4 1.5mm | |
| copper ------- 18um(0.5 oz)+plate BOT Layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.6mil/4.4mil |
| Minimum / Maximum Holes: | 0.4/4.3mm |
| Number of Different Holes: | 12 |
| Number of Drill Holes: | 831 |
| Number of Milled Slots: | 15 |
| Number of Internal Cutouts: | 1 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL), Sn>=2.54µm |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | White, PSR400 WT02, Taiyo Supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Plc Control Embedded Systems Programming Led Lighting Systems Embedded Systems Basics Embedded Web Server Cheap Gps Tracker |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Competitive Advantage:
1) With UL,ROHS,ISO,IPC
2).Lead time:3-10 working days
3)Competitive price best quality
4).Rich 20 years experience in High Tg Multilayer PCB .
What Information customer need to provide for quotation ?
1. PCB Gerber files ,protel,powerpcb,Autocad,etc.
2. BOM list for PCB assembly.
3. Send us your sample PCB or PCBA.
4. OEM is acceptable.
|
|
